GTAHL1212-20

Product Information

  • For gang type tool posts.
  • High rigidity due to desigh of vertical insert.

The actual product may differ from the displayed image.

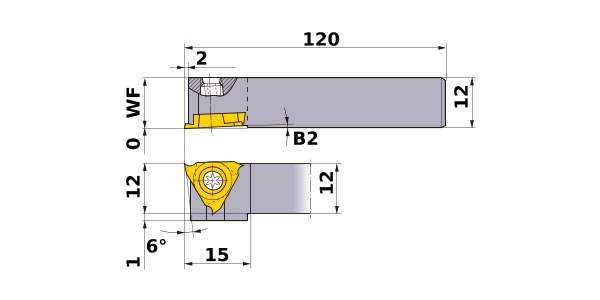

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI GTAHL1212JX20
Hand L
Stock
Unit of Length M
B 12
LF 120
LH 15
CDX 2
H 12
HF 12
HBH 1
Peripheral effective cutting edge count: ZEFP 1
2D Model (DXF)
CAD data name Download
GTAHL1212-20
CAD
