  • Ideal combination of outer CVD insert and inner PVD insert.
  • High rigidity body that enabled L/D=6 deep hole machining.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

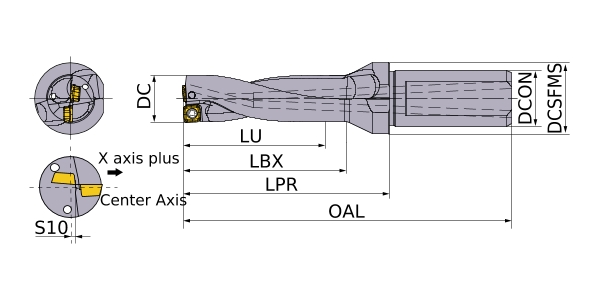

Type1 [Outspread]

Type2 [Outspread]

  1 2 3 4 5 6 7
Order Number Type CAD Type of Coolant Hand Name of Grade Grade Stock
MVX0562X2C075 Type1 CAD Internal
MVX0562X3C075 Type1 CAD Internal
MVX0562X4C075 Type1 CAD Internal
MVX0562X5F075 Type2 CAD Internal
MVX0593X2C075 Type1 CAD Internal
MVX0593X3C075 Type1 CAD Internal
MVX0593X4C075 Type1 CAD Internal
MVX0593X5F075 Type2 CAD Internal
MVX0625X2C075 Type1 CAD Internal
MVX0625X3C075 Type1 CAD Internal
MVX0625X4C075 Type1 CAD Internal
MVX0625X5F075 Type2 CAD Internal
MVX0656X2C075 Type1 CAD Internal
MVX0656X3C075 Type1 CAD Internal
MVX0656X4C075 Type1 CAD Internal
MVX0656X5F075 Type2 CAD Internal
MVX0687X2C100 Type1 CAD Internal
MVX0687X3C100 Type1 CAD Internal
MVX0687X4C100 Type1 CAD Internal
MVX0687X5C100 Type1 CAD Internal
D1 IC DMIN CUTDIA DAXX DC DC1 DC2 ld LU BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 L3 LBB CDX L20 LDRED L15 LCF L2 LH L19 LPR L1 L L24 FLGT LF CBDP OAL D4 DCON D2 DCX D5 DN DCSFMS BD BD1 BD2 BD3 BD4 BD5 D8 DAH DAH1 DAH2 DCCB CNT D9 B L7 LCCB L8 L9 HBKW LS H1 H H2 HF HBH W1 KWW F1 WF BS S1 WF2 S4 S Z2 PDY PDX ap APMX HTB DCN CDI DCINX BDX CWX LBX RR GAMF GAMO LAMS ALF FHA KRINS STA WT R PRFRAD RE RE1 RE2 RE3 LTA LBYD KWL Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge Breaker Use body Modular Blade Insert Number DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
.562 2 1.12 2.19 4.19 .75 1.25 1.4 2 2 1
.562 3 1.69 2.75 4.75 .75 1.25 1.96 2 2 1
.562 4 2.25 3.32 5.32 .75 1.25 2.52 2 2 1
.562 5 2.81 3.61 5.61 .75 .98 3.09 2 2 1
.593 2 1.19 2.25 4.25 .75 1.25 1.46 2 2 1
.593 3 1.78 2.85 4.85 .75 1.25 2.06 2 2 1
.593 4 2.37 3.44 5.44 .75 1.25 2.65 2 2 1
.593 5 2.97 3.77 5.77 .75 .98 3.24 2 2 1
.625 2 1.25 2.32 4.32 .75 1.25 1.53 2 2 1
.625 3 1.88 2.94 4.94 .75 1.25 2.15 2 2 1
.625 4 2.5 3.57 5.57 .75 1.25 2.78 2 2 1
.625 5 3.13 3.93 5.93 .75 .98 3.4 2 2 1
.656 2 1.31 2.38 4.38 .75 1.25 1.59 2 2 1
.656 3 1.97 3.04 5.04 .75 1.25 2.24 2 2 1
.656 4 2.62 3.69 5.69 .75 1.25 2.9 2 2 1
.656 5 3.28 4.08 6.08 .75 .98 3.56 2 2 1
.687 2 1.374 2.72 4.97 1 1.5 1.65 2 2 1
.687 3 2.061 3.41 5.66 1 1.5 2.34 2 2 1
.687 4 2.748 4.09 6.34 1 1.5 3.03 2 2 1
.687 5 3.435 4.78 7.03 1 1.5 3.71 2 2 1
  1 2 3 4 5 6 7

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
