MVX_INCH
The actual product may differ from the displayed image.

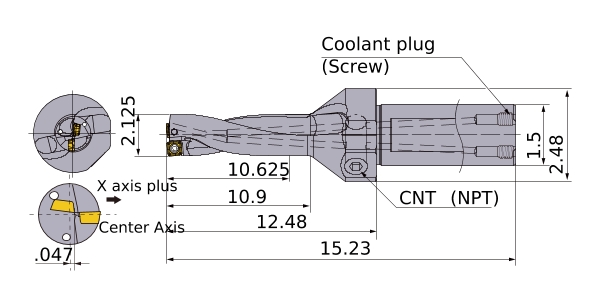

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Sales unit | 1 |
Stock | |
Unit of Length | I |
DC | 2.125 |
DCON | 1.5 |
DCSFMS | 2.48 |
OAL | 15.23 |
LPR | 12.48 |
LU | 10.625 |
S10 | .047 |
LBX | 10.9 |
ld | 5 |
Cutting item count: CICT | 2 |
Peripheral effective cutting edge count: ZEFP | 2 |
Effective Cutting Edge | 1 |
Type of Coolant | Internal |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
