Drills

MFE_INCH
（Solid Carbide Flat Bottom Drills）

METRIC Products
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.

  • High efficiency drilling in various types of machining.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

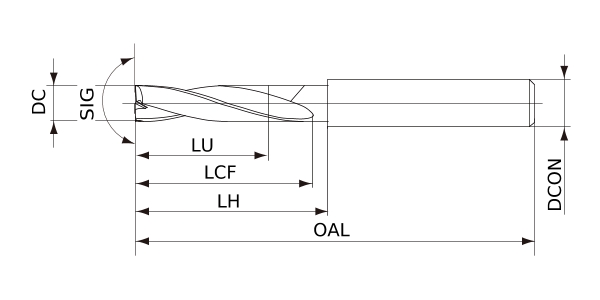

Type1 [Outspread]

Type2 [Outspread]

  1 2 3
Order Number Type CAD Type of Coolant Hand Name of Grade Grade Stock
MFE0305X02S060 Type1 CAD External   Carbide DP1020
MFE0318X02S060 Type1 CAD External   Carbide DP1020
MFE0357X02S060 Type1 CAD External   Carbide DP1020
MFE0397X02S060 Type1 CAD External   Carbide DP1020
MFE0404X02S060 Type1 CAD External   Carbide DP1020
MFE0437X02S060 Type1 CAD External   Carbide DP1020
MFE0476X02S060 Type1 CAD External   Carbide DP1020
MFE0516X02S060 Type1 CAD External   Carbide DP1020
MFE0556X02S060 Type1 CAD External   Carbide DP1020
MFE0595X02S060 Type1 CAD External   Carbide DP1020
MFE0635X02S080 Type1 CAD External   Carbide DP1020
MFE0653X02S080 Type1 CAD External   Carbide DP1020
MFE0675X02S080 Type1 CAD External   Carbide DP1020
MFE0714X02S080 Type1 CAD External   Carbide DP1020
MFE0754X02S080 Type1 CAD External   Carbide DP1020
MFE0794X02S080 Type1 CAD External   Carbide DP1020
MFE0833X02S100 Type1 CAD External   Carbide DP1020
MFE0843X02S100 Type1 CAD External   Carbide DP1020
MFE0873X02S100 Type1 CAD External   Carbide DP1020
MFE0913X02S100 Type1 CAD External   Carbide DP1020
D1 IC DMIN CUTDIA DAXX DC DC1 DC2 ld LU BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 L3 LBB CDX L20 LDRED L15 LCF L2 LH L19 LPR L1 L L24 FLGT LF CBDP OAL D4 DCON D2 DCX D5 DN DCSFMS BD BD1 BD2 BD3 BD4 BD5 D8 DAH DAH1 DAH2 DCCB CNT D9 B L7 LCCB L8 L9 HBKW LS H1 H H2 HF HBH W1 KWW F1 WF BS S1 WF2 S4 S Z2 PDY PDX ap APMX HTB DCN CDI DCINX BDX CWX LBX RR GAMF GAMO LAMS ALF FHA KRINS STA WT R PRFRAD RE RE1 RE2 RE3 LTA LBYD KWL Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge Breaker Use body Modular Blade Insert Number DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
.12 2 .24 180° .551 .846 2.165 .236 20° 2
.125 2 .25 180° .551 .839 2.165 .236 20° 2
.1406 2 .281 180° .63 .89 2.165 .236 20° 2
.1562 2 .312 180° .63 .858 2.165 .236 20° 2
.159 2 .318 180° .709 .933 2.441 .236 20° 2
.1719 2 .344 180° .709 .909 2.441 .236 20° 2
.1875 2 .375 180° .787 .933 2.441 .236 20° 2
.2031 2 .406 180° .866 1.004 2.441 .236 20° 2
.2188 2 .438 180° .945 1.075 2.441 .236 20° 2
.2344 2 .469 180° .949 1.067 2.445 .236 20° 2
.25 2 .5 180° 1.028 1.177 2.917 .315 20° 2
.257 2 .514 180° 1.106 1.252 2.917 .315 20° 2
.2656 2 .531 180° 1.106 1.248 2.917 .315 20° 2
.2812 2 .562 180° 1.185 1.319 2.917 .315 20° 2
.2969 2 .594 180° 1.264 1.39 2.917 .315 20° 2
.3125 2 .625 180° 1.264 1.382 2.917 .315 20° 2
.3281 2 .656 180° 1.343 1.492 3.311 .394 20° 2
.332 2 .664 180° 1.343 1.492 3.311 .394 20° 2
.3438 2 .688 180° 1.421 1.563 3.311 .394 20° 2
.3594 2 .719 180° 1.5 1.634 3.311 .394 20° 2
