Small Tools > GYS00_INCH

Small Tools

GYS00_INCH
（for swiss style lathes）

METRIC Products
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.

  • Highly reliable insert clamping
  • High accuracy, long life inserts for a wide variety of machining applications
  • Dimensions shown are when the gauge insert is used.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

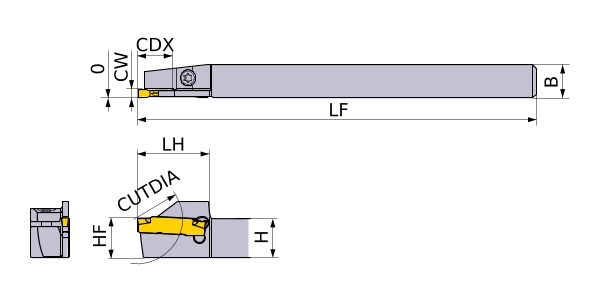

Type1 [Outspread]

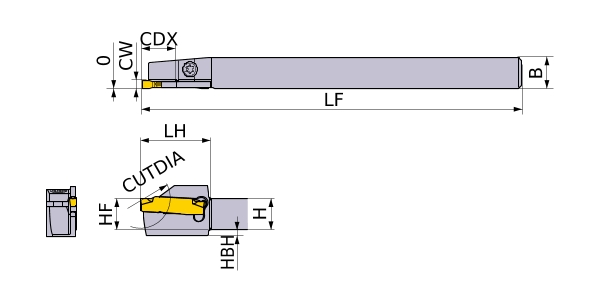

Type2 [Outspread]

  1 2
Reference Number Type CAD Type of Coolant Hand Name of Grade Grade Stock
SZ1R9C1 Type1 R
SZ1R9D1 Type1 R
SZ1R9E1 Type1 R
SB1R9C1 Type2 R
SB1R9D1 Type2 R
SB1R9E1 Type2 R
SB1R9F1 Type2 R
SD1R9C1 Type2 R
SD1R9D1 Type2 R
SD1R9E1 Type2 R
SD1R9F1 Type2 R
SF1R9C1 Type2 R
SF1R9D1 Type2 R
SF1R9E1 Type2 R
SF1R9F1 Type2 R
SD1R9E2 Type2 R
SD1R9F2 Type2 R
SF1R9E2 Type2 R
SF1R9F2 Type2 R
SZ1L9C1 Type1 L
ap CDX APMX HTB DCN CDI DCINX BDX CWX LBX D1 IC CUTDIA DAXX DMIN DC DC1 DC2 BD BD1 BD2 BD3 BD4 BD5 Modular Blade Modular Holder D2 DCX D4 DCON D5 DN DCSFMS D8 DAH DAH1 DAH2 DCCB CNT D9 B L1 L L24 FLGT LF CBDP OAL LPR L2 LH L19 LU L3 LBB L20 LDRED L15 LCF L7 LCCB L8 L9 HBKW LS H1 H H2 HBH HF W1 KWW F1 WF BS S1 WF2 S4 S Z2 PDY PDX RR GAMF GAMO LAMS ALF FHA KRINS STA WT R PRFRAD RE RE1 RE2 RE3 ld BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 LTA LBYD KWL Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge Breaker Use Insert Number DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
.433 .866 GYSRUS06B00-C11 .375 4.5 .866 .375 .125 .375 1
.433 .866 GYSRUS06B00-D11 .375 4.5 .866 .375 .125 .375 1
.433 .866 GYSRUS06B00-E11 .375 4.5 .866 .375 .125 .375 1
.512 1.024 GYSRUS08B00-C13 .5 4.5 .866 .5 .5 1
.512 1.024 GYSRUS08B00-D13 .5 4.5 .866 .5 .5 1
.512 1.024 GYSRUS08B00-E13 .5 4.5 .866 .5 .5 1
.512 1.024 GYSRUS08B00-F13 .5 4.5 .866 .5 .5 1
.669 1.338 GYSRUS10B00-C17 .625 4.5 1.063 .625 .625 1
.669 1.338 GYSRUS10B00-D17 .625 4.5 1.063 .625 .625 1
.669 1.338 GYSRUS10B00-E17 .625 4.5 1.063 .625 .625 1
.669 1.338 GYSRUS10B00-F17 .625 4.5 1.063 .625 .625 1
.669 1.338 GYSRUS12B00-C17 .75 4.5 1.102 .75 .75 1
.669 1.338 GYSRUS12B00-D17 .75 4.5 1.102 .75 .75 1
.669 1.338 GYSRUS12B00-E17 .75 4.5 1.102 .75 .75 1
.669 1.338 GYSRUS12B00-F17 .75 4.5 1.102 .75 .75 1
.787 1.574 GYSRUS10B00-E20 .625 4.5 1.22 .625 .625 1
.787 1.574 GYSRUS10B00-F20 .625 4.5 1.22 .625 .625 1
.787 1.574 GYSRUS12B00-E20 .75 4.5 1.22 .75 .75 1
.787 1.574 GYSRUS12B00-F20 .75 4.5 1.22 .75 .75 1
.433 .866 GYSLUS06B00-C11 .375 4.5 .866 .375 .125 .375 1
  1 2

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition

  • Limitation of the Maximum Groove Depth
